How to set up Nginx as a reverse proxy

• Servers and Infrastructure
• Updated: 4 October 2026
• About 10 min read

Step-by-step setup

1. 1

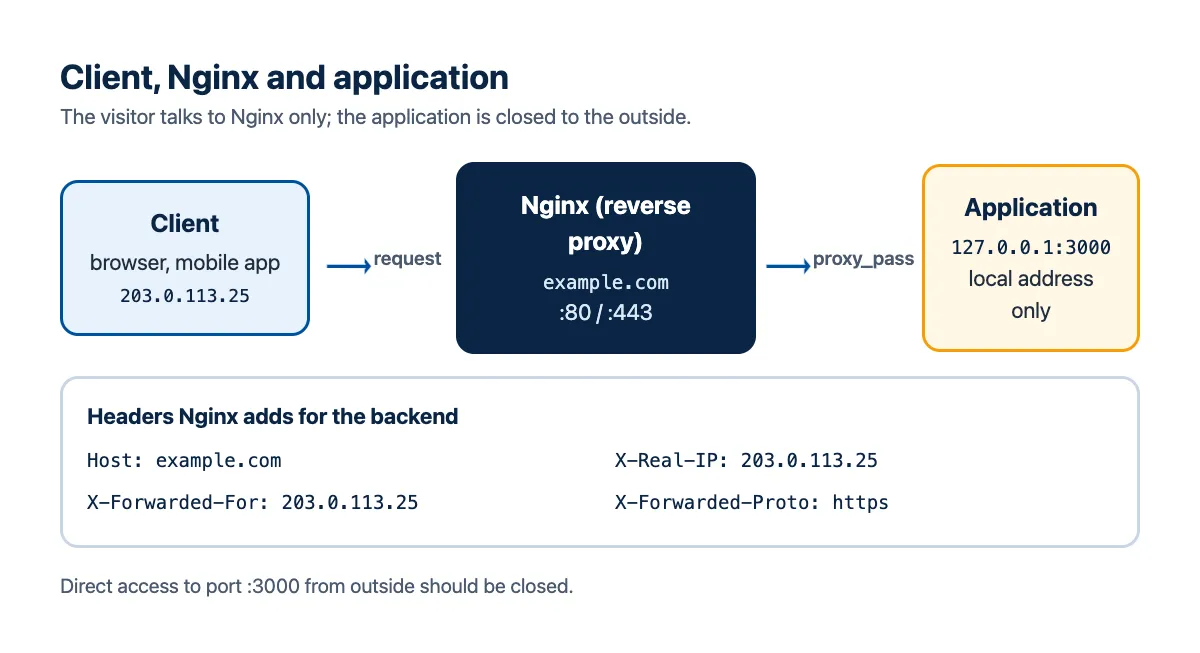

   Make the application listen on the local address only

   If Nginx and the application are on the same server, make the application listen on 127.0.0.1 rather than 0.0.0.0 (all network interfaces). Only Nginx on the same server can then reach it; nobody can bypass Nginx and connect directly at http://server-ip:3000.

   If the application is on another server, bind it to the internal network address (e.g. 10.0.0.5) and allow only the Nginx server to reach that port in the firewall. This step is also the precondition for the "real IP" setting described later being safe.

   : Enlarge

2. 2

   Create the server block

   In Nginx every site is defined by a server block. Create a new configuration file. Its location depends on the distribution: .conf files under /etc/nginx/conf.d/ are a common layout; Debian and Ubuntu use /etc/nginx/sites-available/ together with sites-enabled/.

   Nginx

   # Example file: /etc/nginx/conf.d/example.com.conf (the path depends on the distribution)
   server {
       listen 80;
       server_name example.com www.example.com;

       location / {
           # Forward all requests to the application behind Nginx
           proxy_pass http://127.0.0.1:3000;
       }
   }

   listen sets the port to listen on and server_name sets which domain names this block answers for. The location / block covers every address; the proxy_pass directive inside it says where the request is forwarded.

3. 3

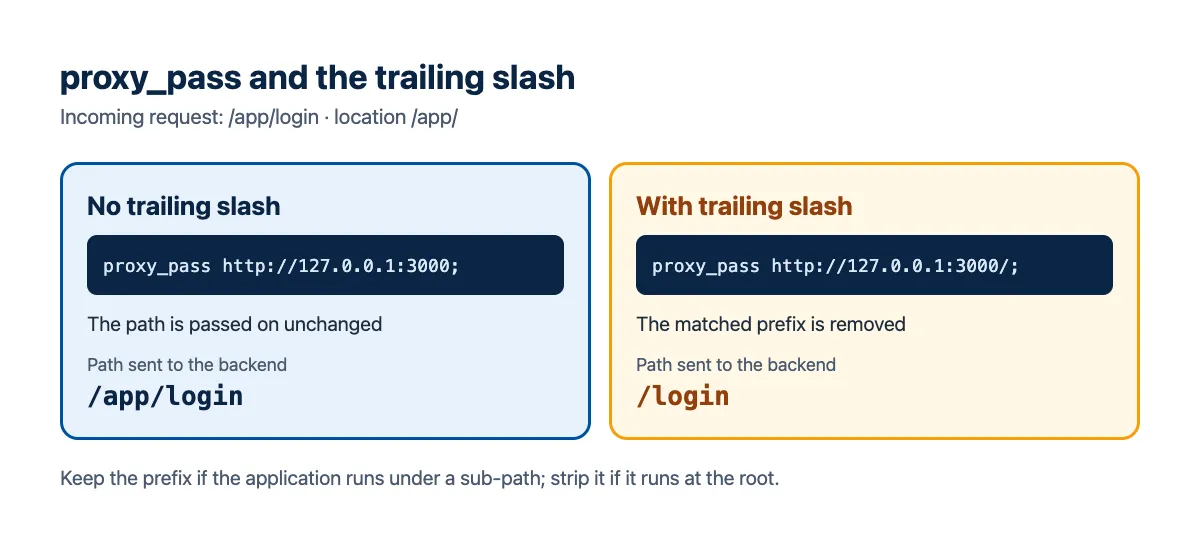

   Use proxy_pass and the trailing slash correctly

   This is where the most common mistake happens. If the proxy_pass address has a path after the server name (even a single /), Nginx replaces the part of the request that matched the location with that path. If there is no path, the request address is passed on unchanged.

   location	proxy_pass	Incoming request	Path sent to the backend
   /app/	http://127.0.0.1:3000	/app/login	/app/login
   /app/	http://127.0.0.1:3000/	/app/login	/login
   /old/	http://127.0.0.1:3000/new/	/old/page	/new/page
   /app	http://127.0.0.1:3000/	/app/login	//login (wrong)

   Nginx

   # 1) NO path in proxy_pass: the address is passed on unchanged
   #    /app/login  ->  /app/login
   location /app/ {
       proxy_pass http://127.0.0.1:3000;
   }

   # 2) proxy_pass ends with "/": the matched prefix is removed
   #    /api/list  ->  /list
   location /api/ {
       proxy_pass http://127.0.0.1:3001/;
   }

   # 3) proxy_pass has another path: the prefix is replaced by that path
   #    /old/page  ->  /new/page
   location /old/ {
       proxy_pass http://127.0.0.1:3000/new/;
   }

   As a rule, end the location and the proxy_pass path the same way: both with a slash, or no path at all in proxy_pass. If your application is configured to run under a sub-path (e.g. /app/), keep the prefix; if it assumes it runs at the root, strip it. In location blocks defined by a regular expression, proxy_pass cannot contain a path; Nginx reports an error in the configuration test.

   : Enlarge

4. 4

   Forward the necessary headers

   Nginx sends the request to the backend again on its own behalf. Without extra settings the application sees Nginx's IP address instead of the visitor's, and the Host header becomes the address written in proxy_pass. These four headers carry the missing information to the application:

   Nginx

   proxy_pass http://127.0.0.1:3000;

   # The domain name the visitor asked for
   proxy_set_header Host              $host;
   # IP address of the client that connected to Nginx
   proxy_set_header X-Real-IP         $remote_addr;
   # Addresses the request passed through (appended to the existing list)
   proxy_set_header X-Forwarded-For   $proxy_add_x_forwarded_for;
   # Scheme used by the visitor: http or https
   proxy_set_header X-Forwarded-Proto $scheme;

   • Host: the domain name the visitor asked for. The application uses it to generate links and to tell several domains apart.
   • X-Real-IP: the IP address of the client that connected to Nginx.
   • X-Forwarded-For: the list of addresses the request has passed through. $proxy_add_x_forwarded_for appends the connecting address to the list sent by the client.
   • X-Forwarded-Proto: the scheme the visitor used (http or https).

   Note: proxy_set_header directives are inherited from the level above only if the current level has no proxy_set_header at all. If you add a single header inside a location, the ones you wrote at server level no longer apply in that block; you have to repeat all of them.

5. 5

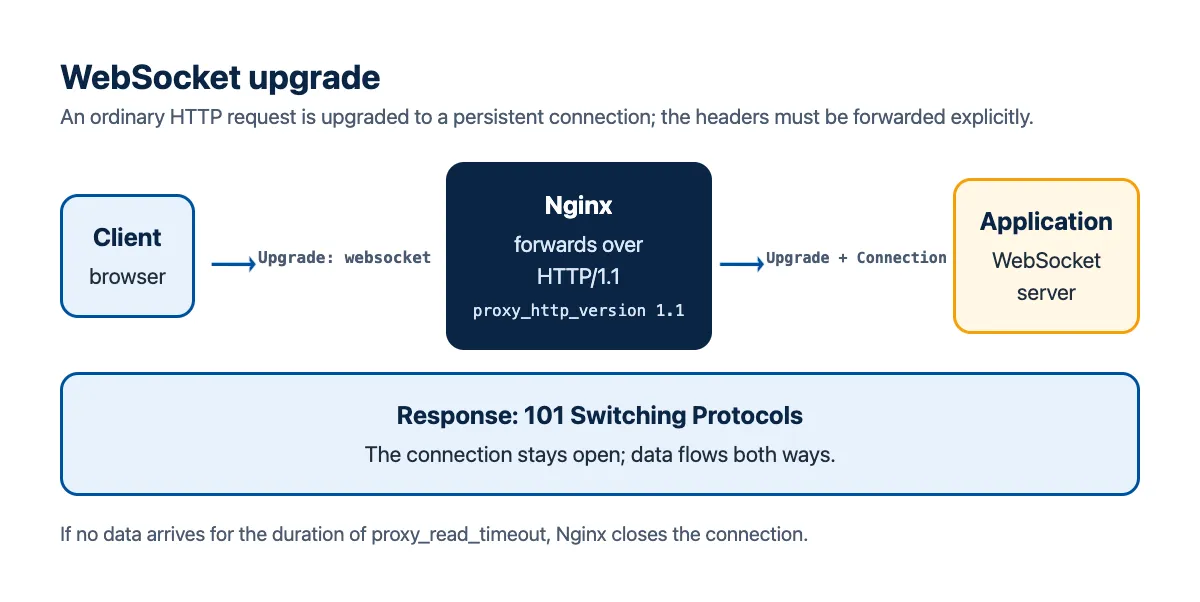

   Add WebSocket support

   Features such as live chat, notifications or real-time dashboards use WebSocket. A WebSocket starts as an ordinary HTTP request that is upgraded to a persistent connection through the Upgrade header. These headers do not pass through a proxy on their own; they have to be forwarded explicitly, and Nginx has to speak HTTP/1.1 to the backend.

   Nginx

   # Defined once at http level (outside the server block)
   map $http_upgrade $connection_upgrade {
       default upgrade;
       ''      close;
   }

   server {
       listen 80;
       server_name example.com;

       location / {
           proxy_pass http://127.0.0.1:3000;

           # HTTP/1.1 and upgrade headers for WebSocket
           proxy_http_version 1.1;
           proxy_set_header Upgrade    $http_upgrade;
           proxy_set_header Connection $connection_upgrade;

           proxy_set_header Host              $host;
           proxy_set_header X-Real-IP         $remote_addr;
           proxy_set_header X-Forwarded-For   $proxy_add_x_forwarded_for;
           proxy_set_header X-Forwarded-Proto $scheme;

           # An idle WebSocket connection is closed after this time
           proxy_read_timeout 300s;
       }
   }

   The map block belongs at http level (outside the server block): it sends Connection: upgrade if the client asked for an upgrade and Connection: close if it did not. The same location therefore works for ordinary requests and for WebSocket.

   If no data arrives on a WebSocket connection for the duration of proxy_read_timeout, Nginx closes it. Increase the value or make the application send a "ping" at regular intervals.

   : Enlarge

6. 6

   Set the timeouts and the body size

   Directive	What does it set?	Default
   proxy_connect_timeout	How long to wait for a connection to the backend to be established	60s
   proxy_send_timeout	The longest wait between two write operations while sending the request to the backend	60s
   proxy_read_timeout	The longest wait between two read operations while reading the response from the backend	60s
   client_max_body_size	The upper limit for the request body a client may send (e.g. a file upload)	1m

   Nginx

   # Upload limit (default 1m); exceeding it returns 413
   client_max_body_size 20m;

   location / {
       proxy_pass http://127.0.0.1:3000;

       proxy_connect_timeout 5s;    # connecting to the backend
       proxy_send_timeout    60s;   # sending the request to the backend
       proxy_read_timeout    60s;   # waiting for the backend's response
   }

   # Longer wait for the long-running report address only
   location /reports/ {
       proxy_pass http://127.0.0.1:3000;
       proxy_read_timeout 180s;
   }

   The read and send timeouts measure the silence between two operations, not the total duration. If the application sends nothing for 60 seconds, the visitor gets a 504 error. If the upload limit is exceeded, Nginx returns a 413 error; remember to set the application's own upload limit to the same value. Do not make the timeouts longer than necessary: writing a dedicated location for specific addresses such as long reports or exports is better than raising the limit for the whole site. These errors are covered in detail in the guide on 502, 504 and other Nginx errors.

7. 7

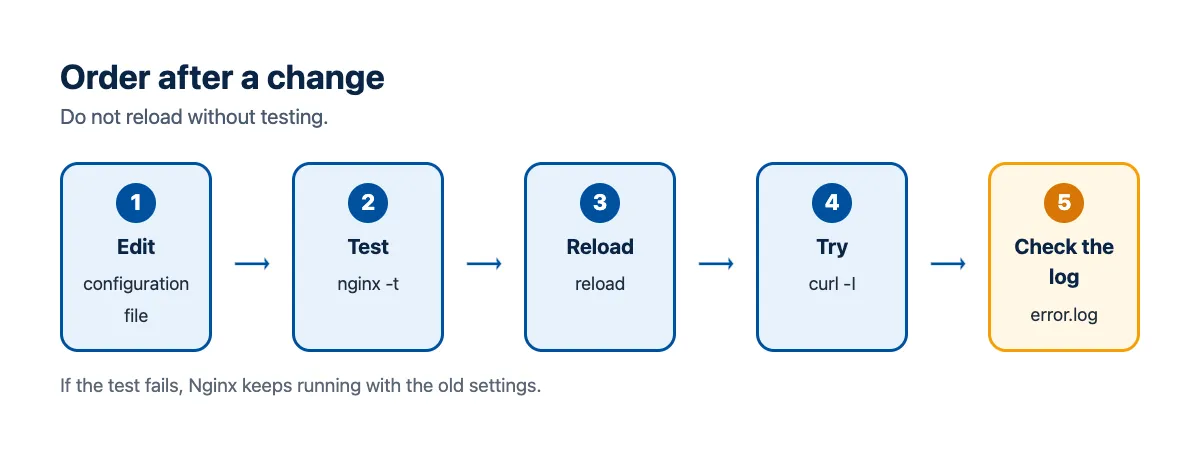

   Test the configuration and reload

   Nginx does not re-read its configuration files on its own. Test the syntax first and, if the test succeeds, reload. A reload does not drop open connections; if the configuration is invalid, Nginx keeps running with the old settings.

   Bash

   # 1) Test the configuration
   sudo nginx -t

   # 2) If the test succeeds, reload (connections are not dropped)
   sudo systemctl reload nginx

   # The same on systems without systemd:
   sudo nginx -s reload

   nginx -t only checks the syntax and the directive context; it does not check whether the backend is up. So try the site afterwards with curl or in a browser.

   : Enlarge

8. 8

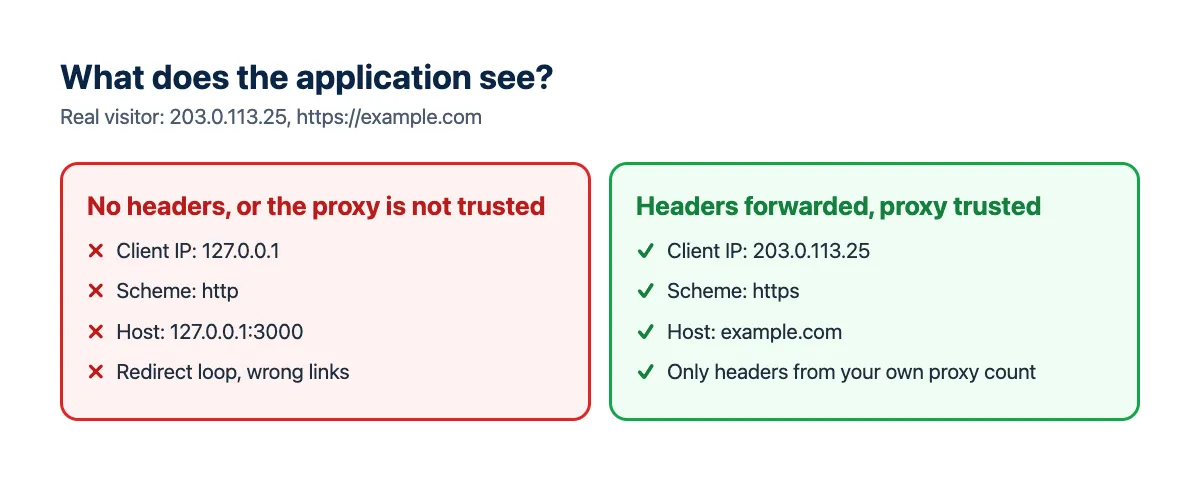

   Teach the application to trust the proxy

   Even when Nginx sends the headers, the application does not use them automatically. Most application frameworks have a setting for this called "trusted proxies": you enter the address of your reverse proxy (127.0.0.1 if it is on the same server), and the framework then honours the X-Forwarded-* headers only for requests coming from that address. The name and place of the setting depend on the framework you use; look for "proxy" in its documentation.

   Typical symptoms when this setting is missing: every visitor shows up as 127.0.0.1 in the logs, IP-based rate limiting counts everybody as one person, the application believes it is on http and falls into an endless redirect loop, or it generates links with http://.

   Security rule: anyone can send X-Forwarded-* headers. Trust them only when the request comes from your own reverse proxy; avoid settings of the "trust all addresses" kind. Otherwise an attacker can bypass IP restrictions and rate limits with a forged header. In a PHP application without a framework, the same logic looks like this:

   PHP

   <?php
   // Addresses of your own reverse proxy only (127.0.0.1 if Nginx is on the same server)
   $guvenilenProxyler = array('127.0.0.1');

   $uzakAdres = $_SERVER['REMOTE_ADDR'] ?? '';
   $istemciIp = $uzakAdres;
   $httpsMi = !empty($_SERVER['HTTPS']) && $_SERVER['HTTPS'] !== 'off';

   // The headers are read only if the request came from a trusted proxy
   if (in_array($uzakAdres, $guvenilenProxyler, true)) {
       $gercekIp = $_SERVER['HTTP_X_REAL_IP'] ?? '';
       if (filter_var($gercekIp, FILTER_VALIDATE_IP) !== false) {
           $istemciIp = $gercekIp;
       }
       $httpsMi = ($_SERVER['HTTP_X_FORWARDED_PROTO'] ?? '') === 'https';
   }

   The example reads the X-Real-IP header because Nginx overwrites it on every request with the address it actually saw. X-Forwarded-For, by contrast, appends to the value sent by the client; the first address in the list may be forged, and the trustworthy one is the last address, added by your proxy.

   : Enlarge

Complete example configuration

The file below brings all the previous steps together. Replace the domain name and the application address with your own.

map $http_upgrade $connection_upgrade {
    default upgrade;
    ''      close;
}

server {
    listen 80;
    server_name example.com www.example.com;

    # Upper limit for the request body (file uploads)
    client_max_body_size 20m;

    location / {
        proxy_pass http://127.0.0.1:3000;
        proxy_http_version 1.1;

        # So that the application sees the real domain, IP and scheme
        proxy_set_header Host              $host;
        proxy_set_header X-Real-IP         $remote_addr;
        proxy_set_header X-Forwarded-For   $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;

        # WebSocket
        proxy_set_header Upgrade    $http_upgrade;
        proxy_set_header Connection $connection_upgrade;

        # Timeouts
        proxy_connect_timeout 5s;
        proxy_send_timeout    60s;
        proxy_read_timeout    60s;
    }
}

To add HTTPS, continue with the guide on HTTPS in Nginx. Once HTTPS is enabled, the $scheme variable becomes https by itself; you do not need to change the header lines. To distribute requests across several application servers, see the guide on load balancing.

Common mistakes

• Slash mismatch: location /api is combined with proxy_pass …/; the backend receives //path or the application returns 404.
• Forgetting the Host header: the application generates links with 127.0.0.1:3000 or shows the wrong site.
• Writing a single header inside a location: the other proxy_set_header lines from the level above are not inherited in that block.
• Forgetting WebSocket: the page loads but live features do not work; the browser console shows a connection error.
• Leaving the backend open to the internet: if the application listens on 0.0.0.0, all limits and access rules in Nginx can be bypassed.
• Restarting without testing: a restart with a broken configuration can leave Nginx unable to start at all. Run nginx -t first, then reload.
• Trusting everyone in the application: setting the trusted proxy list to "all addresses" means forged headers are accepted too.

Verifying the setup

• From inside the server, try the application directly: if it answers, the backend is up.
• Try the same request through Nginx using the domain name: if the answer is the same, the proxy works.
• From outside the server, confirm that http://server-ip:3000 does not open.
• Check in the application's log that the visitor IP is the real address, not 127.0.0.1.
• If something is wrong, look at the Nginx error log; in most installations it is /var/log/nginx/error.log.

# From inside the server: does the application answer directly?
curl -I http://127.0.0.1:3000/

# Through Nginx: does the domain name give the same answer?
curl -I http://example.com/

# If there is an error, the last log lines (this is the path in most installations)
sudo tail -n 50 /var/log/nginx/error.log
