Nginx security settings: rate limiting, headers, access restrictions

• Servers and Infrastructure
• Updated: 4 October 2026
• About 11 min read

Hardening in seven steps

1. 1

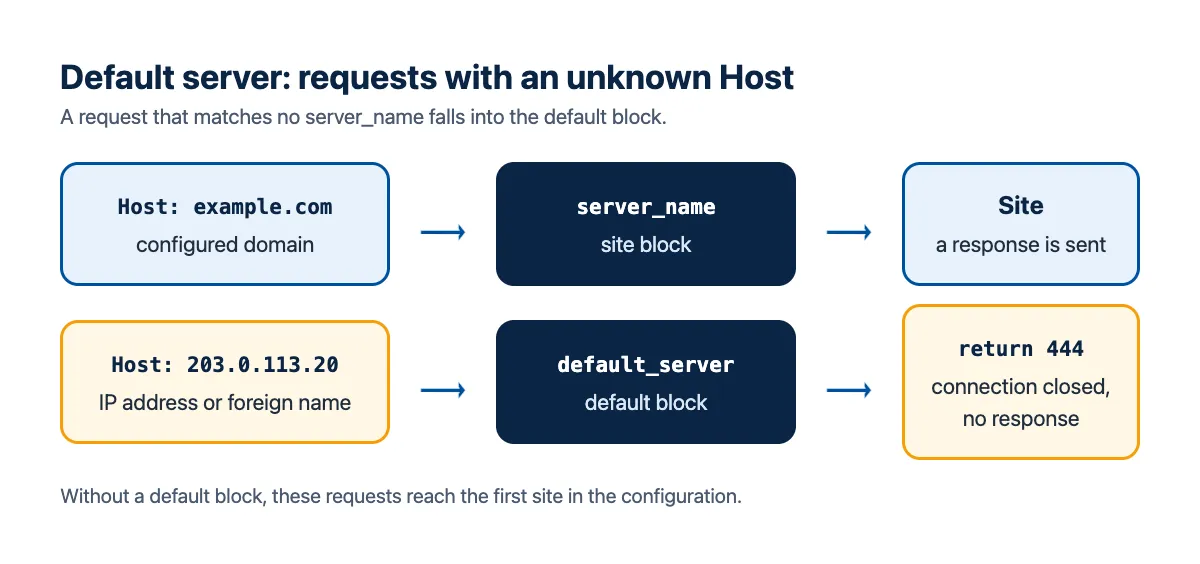

   Reject unknown host names and hide the version

   Nginx matches the Host header of an incoming request against the server_name lines. If none matches, it hands the request to the default server for that port; unless you say otherwise, that is the first server block defined in the configuration. The result: automated scans that reach the server by IP address, or under a domain name that is not yours, end up at your real site.

   To prevent this, define a default (catch-all) block that belongs to no site. return 444; is a code specific to Nginx: it closes the connection without sending a response.

   Nginx

   # Do not show the version number on error pages or in the Server header
   server_tokens off;

   # Default block: requests whose Host matches no site
   server {
       listen 80 default_server;
       listen [::]:80 default_server;
       listen 443 ssl default_server;
       listen [::]:443 ssl default_server;
       server_name _;

       # Reject TLS handshakes for unknown names
       ssl_reject_handshake on;

       # Close the connection without sending a response
       return 444;
   }

   ssl_reject_handshake on; rejects HTTPS connections for unknown names without presenting a certificate and is available in current Nginx versions; on older versions you need to define a self-signed certificate for this block. server_tokens off; removes the version number from error pages and from the Server header. On its own this is not protection; it merely gives less information to scans that pick targets by version. The real measure is keeping Nginx up to date.

   : Enlarge

2. 2

   Rate limiting: limit_req and limit_conn

   Rate limiting caps the number of requests a single address can send in a given time. There are two separate tools:

   • limit_req_zone + limit_req: limits the request rate (for example 10 requests per second).
   • limit_conn_zone + limit_conn: limits the number of connections open at the same time.

   The …_zone directives are defined once in the http block: they set the key (usually the client address, $binary_remote_addr), the name and size of the shared memory zone and, for limit_req_zone, the rate as well. The limit itself is applied inside a server or location.

   Nginx

   # In the http block: zones are defined once
   limit_req_zone  $binary_remote_addr zone=general:10m rate=10r/s;
   limit_req_zone  $binary_remote_addr zone=login:10m rate=5r/m;
   limit_conn_zone $binary_remote_addr zone=conn:10m;

   # Return 429 instead of 503 for rejected requests
   limit_req_status  429;
   limit_conn_status 429;

   server {
       listen 443 ssl;
       server_name example.com;

       ssl_certificate     /etc/letsencrypt/live/example.com/fullchain.pem;
       ssl_certificate_key /etc/letsencrypt/live/example.com/privkey.pem;

       # Whole site: 10 requests per second, a queue of 20 requests
       limit_req  zone=general burst=20 nodelay;
       # At most 20 simultaneous connections from one address
       limit_conn conn 20;

       location / {
           proxy_pass http://127.0.0.1:8080;
       }

       # Login form: 5 requests per minute
       location = /login {
           limit_req zone=login burst=5 nodelay;
           proxy_pass http://127.0.0.1:8080;
       }
   }

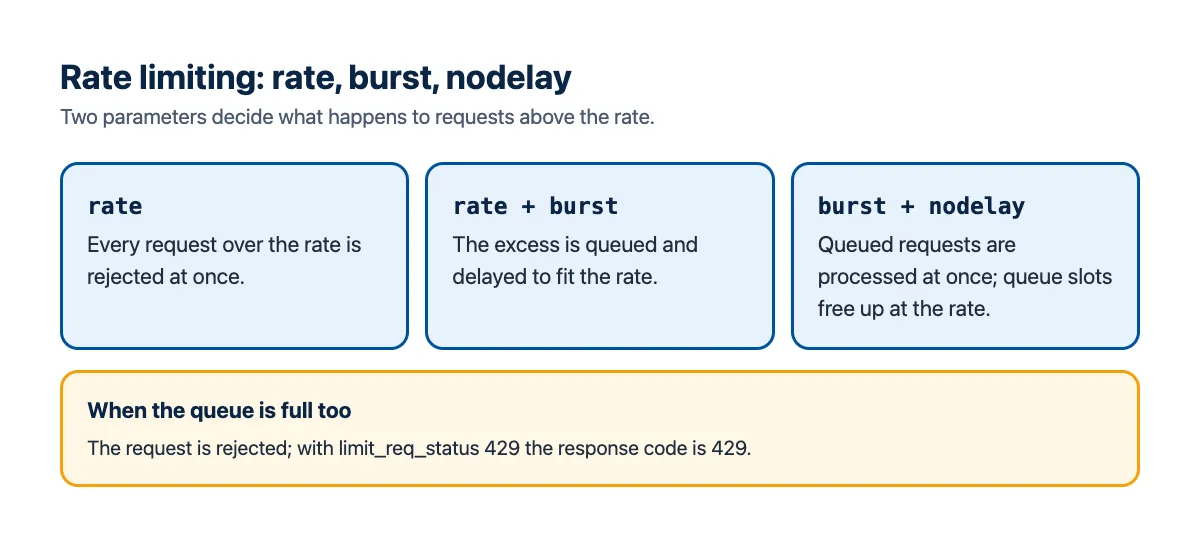

   Two parameters shape the behaviour:

   • burst: how many requests above the rate are queued rather than rejected straight away. Without it, every request over the rate is rejected, which is too harsh for the run of image and script requests that follows a page load.
   • nodelay: queued requests are processed immediately instead of being held back, while the slots in the queue free up at the configured rate. Without it, queued requests are delayed to fit the rate.

   Rejected requests receive a 503 by default. Use limit_req_status 429; and limit_conn_status 429; to return 429, "too many requests", instead; this sets them apart from genuine server errors in the logs. Give sensitive addresses such as the login form a separate, lower limit. If limit_req is defined inside a location, the limit_req from the level above does not apply in that block.

   Note: if Nginx sits behind a CDN or another proxy, $binary_remote_addr is the address of the server in front, not of the visitor, and the limit applies to all visitors together. In that case, first define the real client address with the set_real_ip_from and real_ip_header directives (only for proxy addresses you trust). Rate limiting alone does not stop high-volume attacks; for the layers involved, see the DDoS and bot attacks guide, and for login attempts the Login and session security guide.

   : Enlarge

3. 3

   Security headers and the add_header inheritance trap

   Security headers switch on the browser's built-in protections. In Nginx they are added with add_header; the trailing always makes sure the header is also sent with error responses such as 404 and 500. For what each header means, see the Security headers and HTTPS guide.

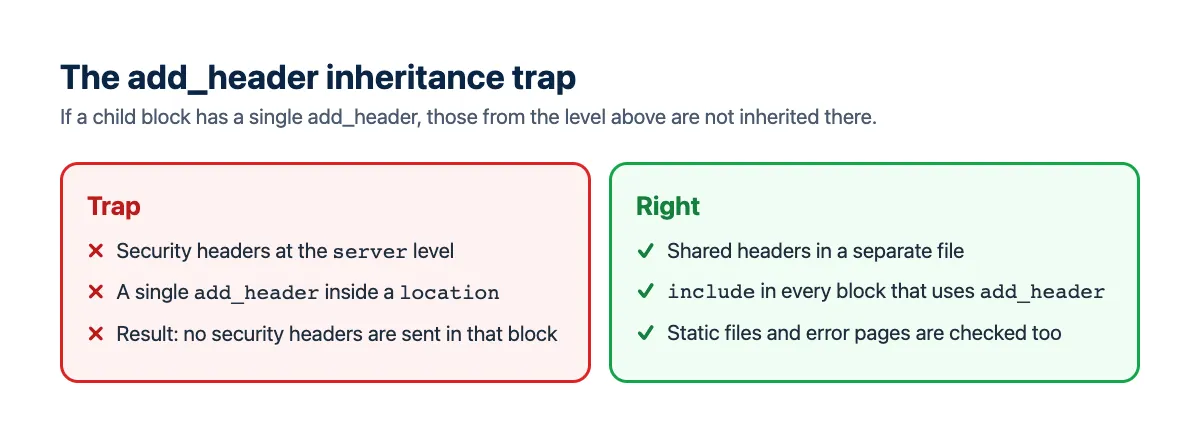

   There is an important trap specific to Nginx: add_header directives are inherited from the level above only if the current block has no add_header at all. The moment you write a single add_header inside a location (a cache header, say), all the security headers from the server level disappear in that block.

   Nginx

   # server level: on all responses
   add_header X-Content-Type-Options "nosniff" always;
   add_header X-Frame-Options "SAMEORIGIN" always;
   add_header Referrer-Policy "strict-origin-when-cross-origin" always;
   add_header Permissions-Policy "geolocation=(), camera=(), microphone=()" always;

   location /assets/ {
       # This block has an add_header: the four headers above are NOT inherited here
       add_header Cache-Control "public, max-age=2592000";

       # Fix: define the shared headers in this block too
       # (the file contains the four add_header lines above)
       include /etc/nginx/snippets/security-headers.conf;
   }

   The reliable fix is to keep the shared headers in a separate file and add it with include to every block that uses add_header. After the change, check not just the home page but also static files and error pages with curl -sI.

   : Enlarge

4. 4

   Block access to hidden files

   Files and directories whose names start with a dot (.env, .git, .htpasswd) may contain passwords, keys and source code, and they are among the first places automated scans look. The one exception is the .well-known directory: it must stay open for standard tasks such as certificate validation.

   Nginx

   # Exception: .well-known stays open (certificate validation etc.)
   location ^~ /.well-known/ {
       allow all;
   }

   # Every file and directory starting with a dot: .env, .git, .htpasswd ...
   location ~ /\. {
       deny all;
   }

   # Backup and dump files forgotten in the web root
   location ~* \.(?:sql|bak|old|orig|log|ini)$ {
       deny all;
   }

   The ^~ modifier means that when this prefix matches, regular-expression location blocks are not checked, so requests under .well-known are not caught by the general ban. The third block closes off backup and dump files forgotten in the web root. Even so, the best approach is not to keep such files in the web root at all: Server and hosting security.

5. 5

   Protect the admin path and the upload directory

   If the admin panel is only used from certain places, an IP restriction cuts off password-guessing attempts before they reach the login form. allow and deny rules are checked in the order they are written and the first match wins, which is why deny all; comes last.

   Nginx

   # ^~ : when this prefix matches, the outer regular-expression blocks are not checked
   location ^~ /admin/ {
       allow 203.0.113.10;        # office
       allow 198.51.100.0/24;     # VPN
       deny  all;

       # The restriction also applies to the PHP handler inside the block
       location ~ \.php$ {
           include fastcgi_params;
           fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
           fastcgi_pass unix:/run/php/php-fpm.sock;   # path varies by distribution
       }
   }

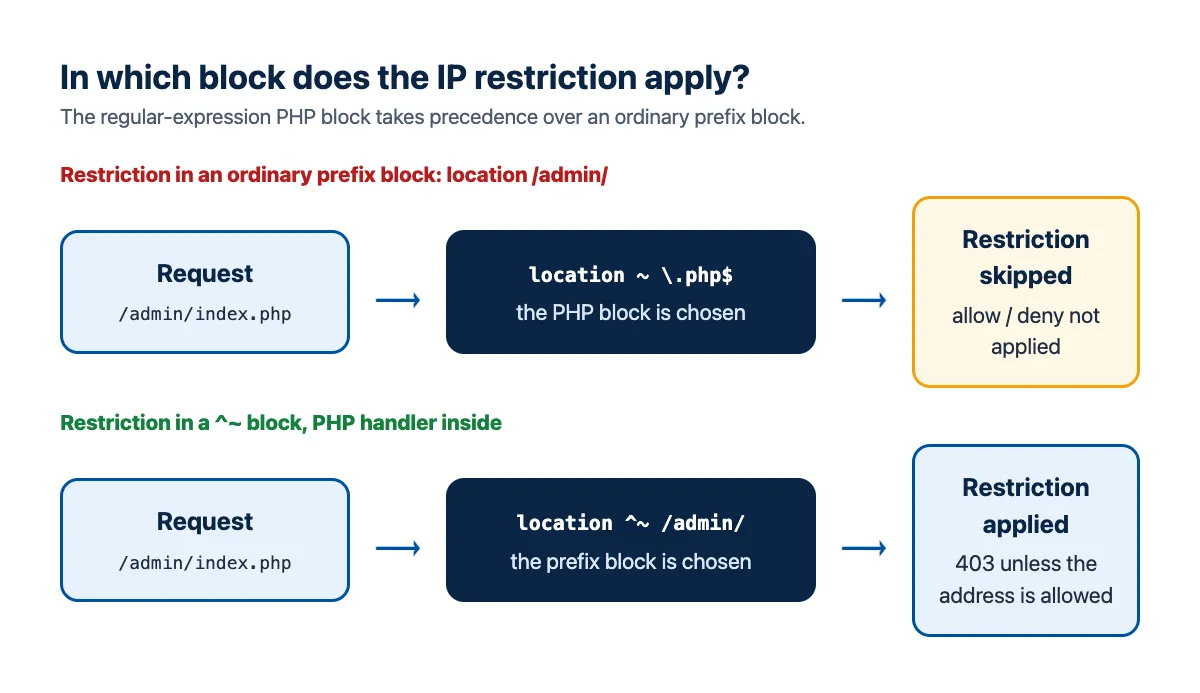

   There is a common mistake here. PHP sites usually have a regular-expression block of the form location ~ \.php$. If you put the restriction in an ordinary location /admin/ block, a request for /admin/index.php lands in the regular-expression block and the restriction is not applied. Using ^~ and placing the PHP handler inside the block, as in the example, prevents this. The PHP-FPM socket path varies by distribution.

   The same logic works in reverse for the upload directory: no script should ever run in a directory visitors can upload files to. The block below serves the files in the directory as static files only and returns 403 for requests with script extensions.

   Nginx

   # Upload directory: static files only
   location ^~ /upload/ {
       # Requests with script extensions are neither executed nor served
       location ~* \.(?:php|phtml|phar|pl|py|cgi|sh)$ {
           return 403;
       }
   }

   This is the second layer that stops an uploaded file from being executed on the server; the first layer is the checking done at upload time: File upload security.

   : Enlarge

6. 6

   Limit large and slow requests

   Requests with very large bodies consume disk space and memory, and requests that are deliberately sent very slowly tie up connections for a long time. Three directives limit both:

   Directive	What does it limit?	Default	When exceeded
   client_max_body_size	The maximum size of the request body (an uploaded file, for example)	1m	413
   client_body_timeout	The time between two successive read operations while the body is being read	60s	408
   client_header_timeout	The time allowed for reading the whole of the request headers	60s	408

   Nginx

   # General limits
   client_max_body_size  2m;
   client_body_timeout   15s;
   client_header_timeout 15s;

   # A higher body limit only for the address where files are uploaded
   location /upload-file {
       client_max_body_size 20m;
       proxy_pass http://127.0.0.1:8080;
   }

   Keep the general limit low and give the address where files are uploaded a separate, higher value. If you use PHP, the upload_max_filesize and post_max_size settings must be consistent with this value as well. Making timeouts too short also cuts off real users on slow mobile connections; lower the values gradually and watch for 408 responses in the logs.

7. 7

   Test, reload and verify from outside

   After every change, test the syntax and reload Nginx. Then confirm that the settings really work by sending requests to your own site from outside: hidden-file addresses should return 403 or 404, the headers should appear on static files too, and a request to the server's IP address should be closed without a response.

   Bash

   # Test the syntax, then reload
   sudo nginx -t
   sudo systemctl reload nginx

   # Headers: home page and a static file
   curl -sI https://example.com/
   curl -sI https://example.com/assets/site.css

   # Are hidden files blocked? (403 or 404 expected)
   curl -s -o /dev/null -w "%{http_code}\n" https://example.com/.env
   curl -s -o /dev/null -w "%{http_code}\n" https://example.com/.git/config

   # Request to the server's IP address: should be closed without a response
   curl -sI http://203.0.113.20/

   Keep a second session open while you try out an IP restriction; if a wrong rule locks you out of the panel, you can revert the configuration from that session.

   : Enlarge

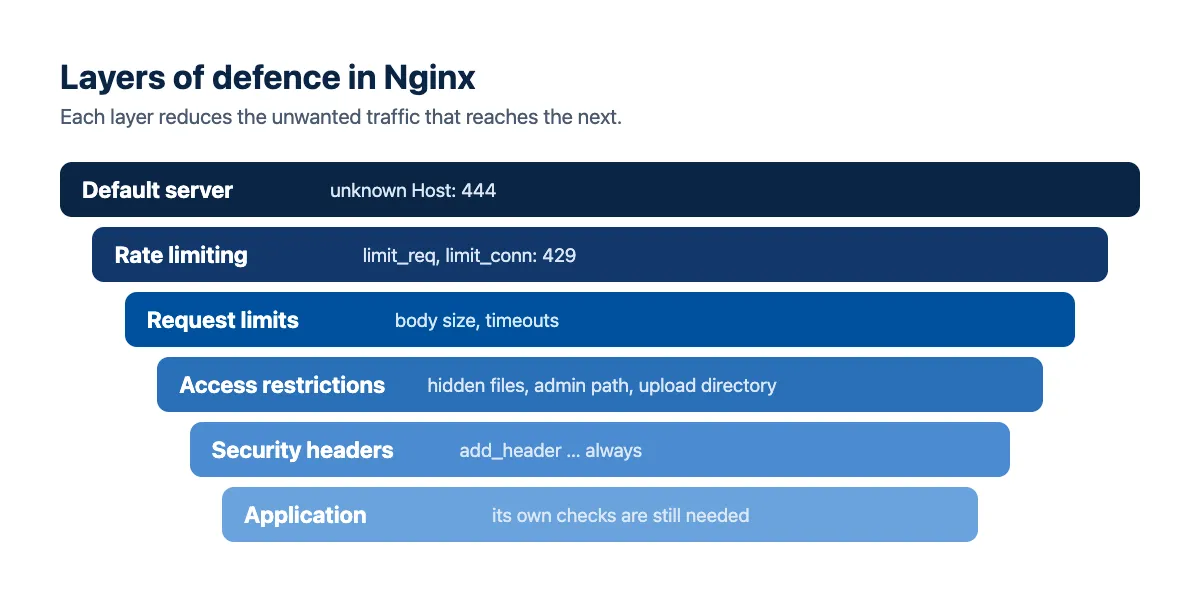

What do these settings not solve?

• Application vulnerabilities: SQL injection, XSS and access-control errors are fixed in the code; an Nginx setting is no substitute.
• High-volume attacks: traffic that fills the server's bandwidth has to be absorbed before it reaches the server (at the hosting provider or CDN level).
• Distributed slow attempts: a small number of requests from each of many different addresses does not hit a per-address limit; login security must be built into the application too.
• Compromised accounts: an IP restriction and a rate limit do not stop someone arriving from an allowed address with a valid password; two-factor authentication is needed.

How should you choose the values?

The numbers in the examples are a starting point, not a recommendation. The right value depends on your site's traffic:

• Look at how many requests the browser sends when a page loads; burst should cover that number.
• Many users leaving the same corporate network may appear under a single IP address; loosen the limit accordingly or treat known addresses separately.
• After enabling the limit, watch the error log for rejected requests and the access log for 429 responses; if real users are being caught, raise the value.
• In HTTP/2 and HTTP/3, each concurrent request counts as a separate connection for limit_conn; do not set the value too low.
• Consider whether you need to exempt search engine bots and your own monitoring tools from the limit.

Checklist

• A default block is defined for ports 80 and 443; requests with an unknown Host do not reach the site.
• server_tokens off; is set and Nginx is up to date.
• There is a general rate limit and a specific one for the login address; rejected requests receive 429.
• Behind a proxy, the real client address is defined correctly.
• Security headers are defined with always and repeated in child blocks that use add_header.
• Files starting with a dot and backup extensions are blocked; .well-known is open.
• The admin path is restricted by IP and the restriction also applies to .php requests.
• No script runs in the upload directory.
• Body size and timeout limits are defined; the upload address has its own value.
• Every change has been tested with nginx -t and verified from outside.
