What is a reverse proxy?

• Servers and Infrastructure
• Updated: 4 October 2026
• About 11 min read

What does a reverse proxy do?

1. 1

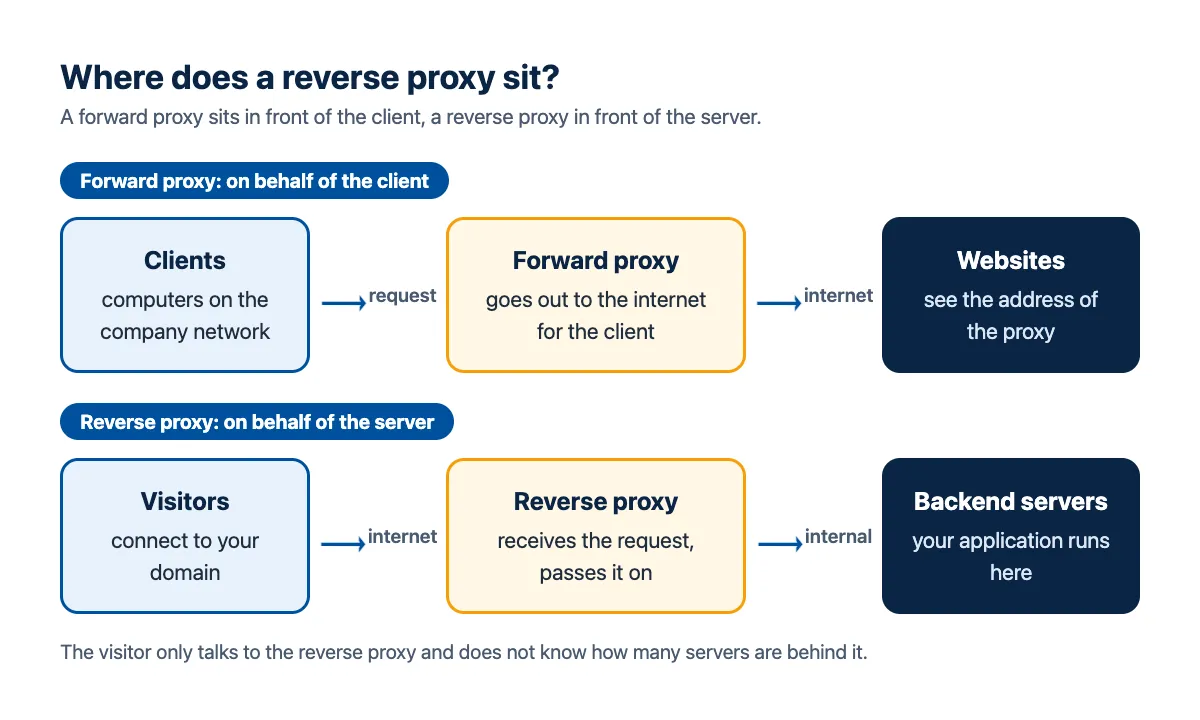

   Where it sits: the difference from a forward proxy

   Both kinds sit in the middle, but they serve different sides:

   • A forward proxy is in front of the client and goes out to the internet on its behalf. It is used on company networks to control outgoing traffic.
   • A reverse proxy is in front of the server and receives requests on its behalf. The site owner sets it up; the visitor does not need to configure anything and is not even aware that it exists.

   The servers behind the reverse proxy are called backend servers (upstream in Nginx configuration). A backend can be a PHP, Node.js, Java or Python application, another web server or a container.

   : Enlarge

2. 2

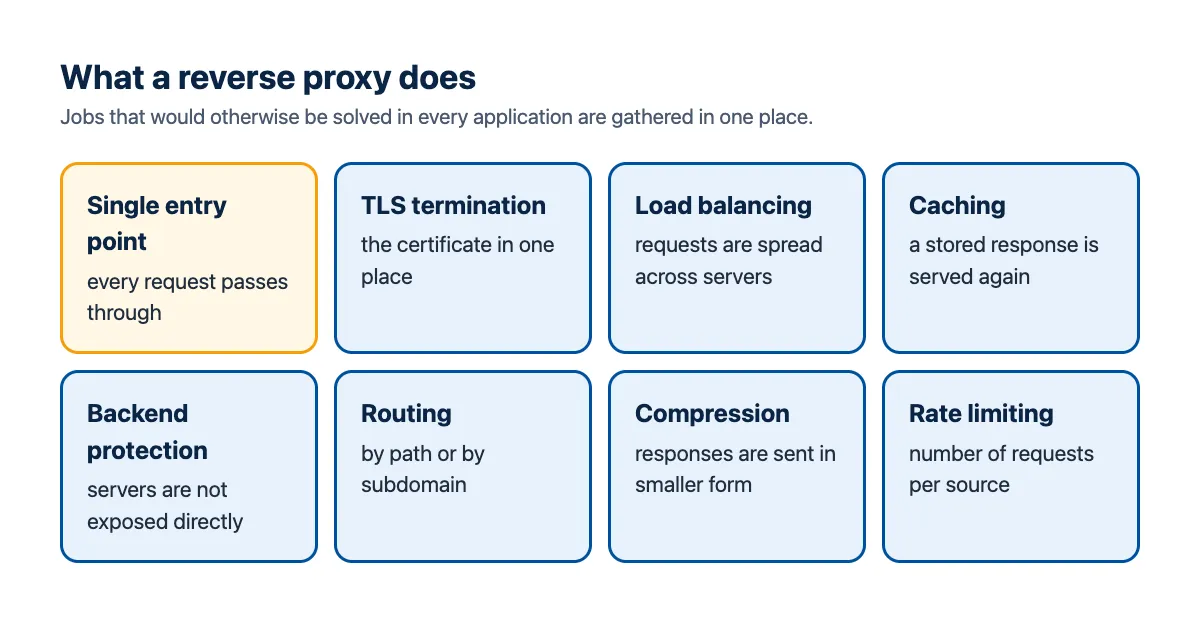

   The jobs it takes on

   • Single entry point: All requests come in through one address and one port. Only the reverse proxy is opened to the internet in the firewall; access logs are collected in one place.
   • SSL/TLS termination: The certificate is installed on the reverse proxy and the encrypted connection is decrypted there. There is no need to install and renew a separate certificate for each application.
   • Load balancing: Requests are spread across several backend servers; if one does not respond, the request is sent to the others.
   • Caching: Responses that do not change are stored and served again without going to the backend at all.
   • Hiding and protecting the backend: Application servers stay on the internal network and cannot be reached directly from the internet. Malformed or oversized requests can be rejected before they reach the backend.
   • Routing: Several applications are published under a single domain, by path (e.g. /api/) or by subdomain (e.g. panel.example.com).
   • Compression: Text-based responses are sent to the visitor compressed; the application does not have to deal with this.
   • Rate limiting: The number of requests a source can make in a given period is restricted; expensive endpoints such as login and search are protected.

   : Enlarge

3. 3

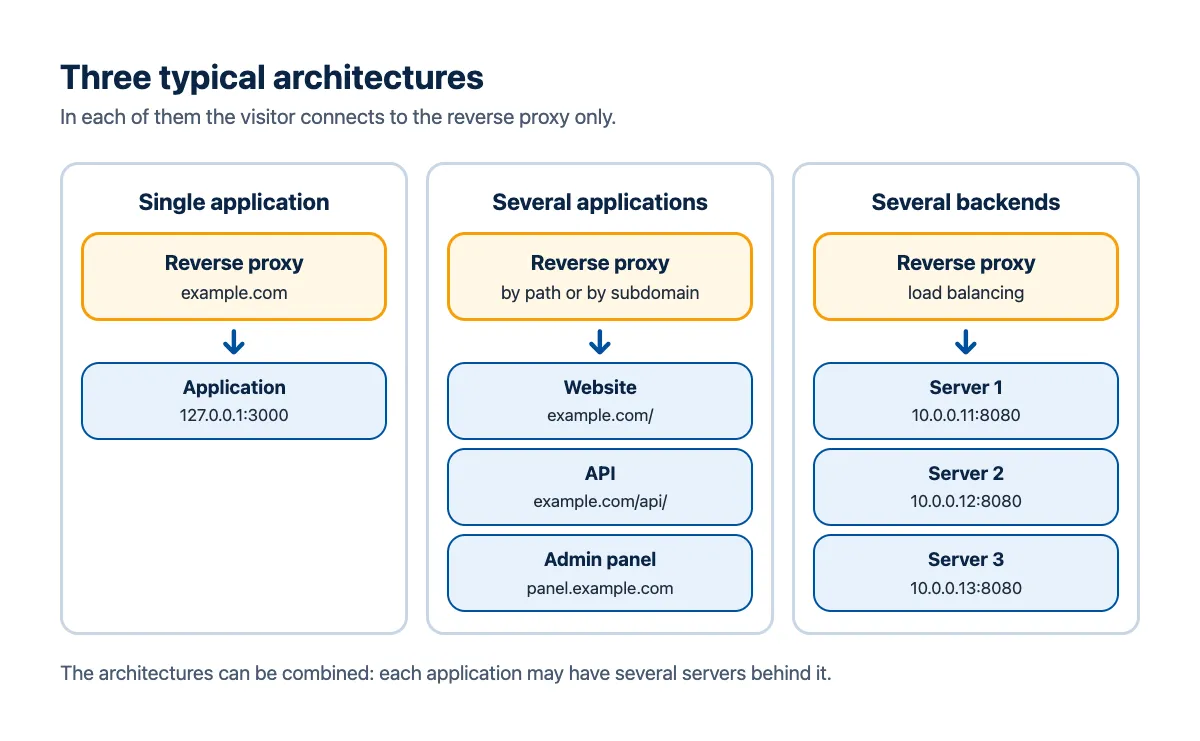

   Typical architectures

   • Single application: The reverse proxy and the application are on the same server. The application listens on a local address only (e.g. 127.0.0.1:3000); the reverse proxy is what is exposed to the outside. This is the most common setup and is useful for single-server sites too: the certificate, compression and static files are separated from the application.
   • Several applications: The same reverse proxy looks at the path or the domain of the request and routes it to different applications. The website, the API and the admin panel run as separate processes, but the visitor sees a single site.
   • Several backends: Copies of the same application run on several servers; the reverse proxy spreads requests among them. When one server is taken down for maintenance, the site stays up. The details are in the load balancing guide.

   : Enlarge

4. 4

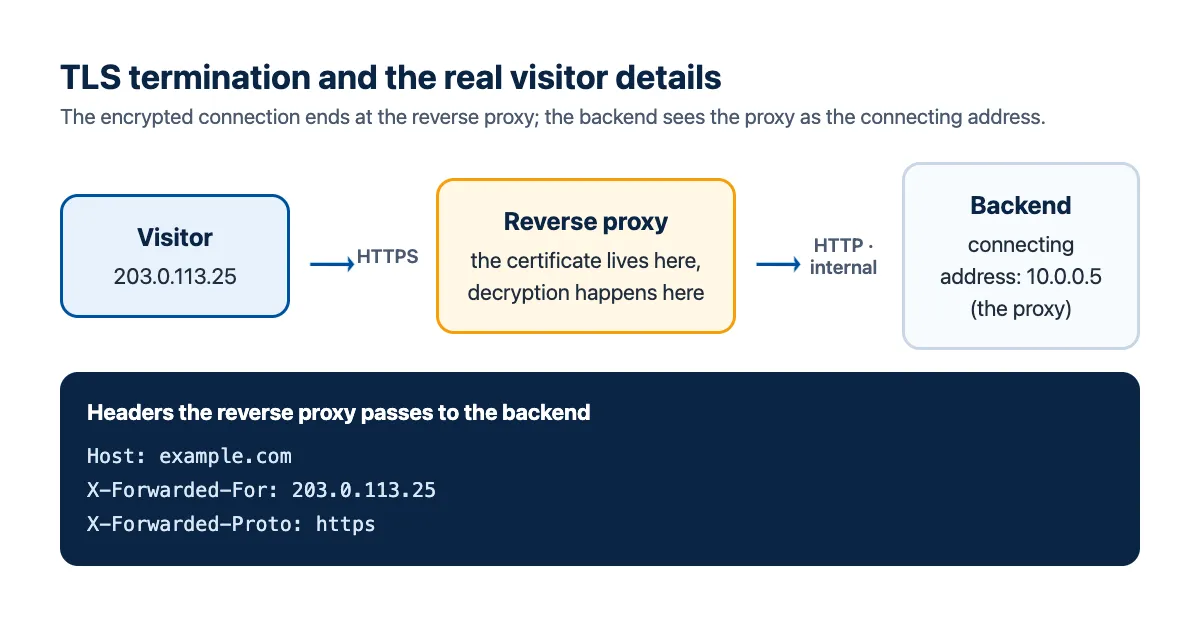

   TLS termination and the real visitor details

   Once a reverse proxy is in between, the backend sees the reverse proxy, not the visitor, at the other end of the connection. To the application, two pieces of information appear to be lost: the visitor's IP address and whether the connection is https. The reverse proxy passes this information on in headers that it adds to the request:

   • X-Forwarded-For: the visitor's IP address (a comma-separated list if there are several proxies in between).
   • X-Forwarded-Proto: the protocol the visitor used (http or https).
   • Host: the domain the visitor asked for.

   The application has to be configured to read these headers; the details are in the "Points to watch" section below.

   : Enlarge

5. 5

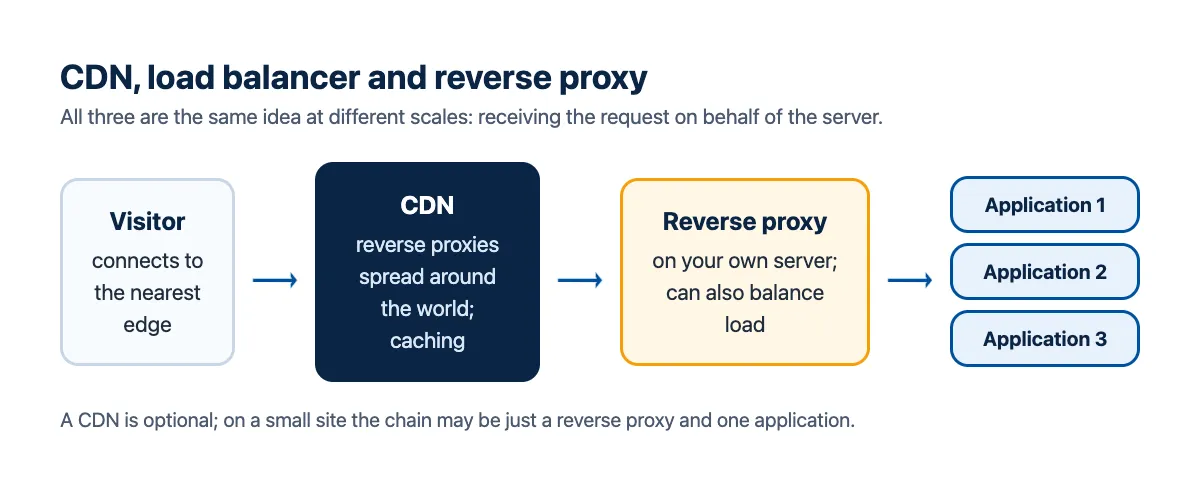

   How it relates to a CDN and a load balancer

   These three concepts are not rivals but the same idea at different scales:

   • A load balancer is a reverse proxy focused on the job of distribution. A reverse proxy such as Nginx can do load balancing as well; in large setups a separate layer or the hosting provider's managed service is used for it.
   • A CDN (content delivery network) consists of reverse proxies that are spread across different parts of the world and concentrate on caching. The visitor connects to the edge server nearest to them; the edge server requests any content it does not have from your server. Services such as Cloudflare are examples of this kind.

   When they are used together the chain gets longer: visitor → CDN → your own reverse proxy → application. In that case your reverse proxy also sees the CDN, not the visitor, at the other end of the connection; the real address is again read from the headers. For the details, see the CDN guide.

   : Enlarge

A short Nginx example

The example below spreads requests for example.com across two application servers on the internal network and passes the visitor details on in headers. The upstream block defines the backend servers; the proxy_pass directive sends the request to that group.

# Backend servers (internal network)
upstream app_backend {
    server 10.0.0.11:8080;
    server 10.0.0.12:8080;
}

server {
    listen 80;
    server_name example.com www.example.com;

    location / {
        # Pass the request to the backend group
        proxy_pass http://app_backend;

        # The domain the visitor asked for, their real IP address and the protocol
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

If you have a single application, there is no need for an upstream block; writing proxy_pass http://127.0.0.1:3000; is enough. Separating several applications by path and by subdomain looks like this:

server {
    listen 80;
    server_name example.com;

    proxy_set_header Host $host;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header X-Forwarded-Proto $scheme;

    # Website
    location / {
        proxy_pass http://127.0.0.1:3000;
    }

    # Requests starting with /api/ go to a separate application
    location /api/ {
        proxy_pass http://127.0.0.1:8080;
    }
}

# Subdomain: the admin panel is a separate application
server {
    listen 80;
    server_name panel.example.com;

    location / {
        proxy_pass http://127.0.0.1:9000;
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

The examples are kept bare to show the concept and listen on port 80 only. A real setup needs additions such as HTTPS, timeout settings and WebSocket support: the step-by-step explanation is in the Nginx reverse proxy setup guide, and certificate installation in the guide to HTTPS on Nginx.

Points to watch

The real visitor IP

If the application looks at the other end of the connection, it sees every visitor with the address of the reverse proxy: the logs become meaningless and an IP-based rate limit counts everyone as one person. The solution is to read the X-Forwarded-For header; however, anyone can send this header. If the request comes straight from the internet, the header cannot be trusted. The rule is this: take the header into account only if the connection comes from the address of your own reverse proxy.

<?php
// Trust the X-Forwarded-For header only if the request comes from your own reverse proxy.
// For a setup with a single reverse proxy; the proxy appends the address it saw to the end of the list.
$guvenilenVekiller = ['10.0.0.5'];

$ip = $_SERVER['REMOTE_ADDR'] ?? '';
if (in_array($ip, $guvenilenVekiller, true) && !empty($_SERVER['HTTP_X_FORWARDED_FOR'])) {
    $adresler = array_map('trim', explode(',', $_SERVER['HTTP_X_FORWARDED_FOR']));
    $aday = end($adresler);
    if (filter_var($aday, FILTER_VALIDATE_IP) !== false) {
        $ip = $aday;
    }
}

// Did the visitor connect to the site over https?
$https = in_array($_SERVER['REMOTE_ADDR'] ?? '', $guvenilenVekiller, true)
    && ($_SERVER['HTTP_X_FORWARDED_PROTO'] ?? '') === 'https';

Most application frameworks have a "trusted proxies" setting for this; use that rather than writing it by hand. It is just as important that the backend servers accept connections from the reverse proxy only; otherwise the reverse proxy can be bypassed and a forged header sent.

Protocol information

With TLS termination, the connection that reaches the application is plain HTTP. If the application ignores the X-Forwarded-Proto header, it generates links with http://, does not send "secure" cookies, or keeps redirecting the site to the https address and puts it into an endless loop.

The Host header

By default, Nginx sends the Host header of the request to the backend according to the address in proxy_pass. For the application to see the domain the visitor typed, the line proxy_set_header Host $host; in the example is needed.

Single point of failure

Since all traffic passes through the reverse proxy, the site goes down if it stops, even when the servers behind it are healthy. On small sites this is an acceptable risk; where downtime is expensive, the reverse proxy is set up redundantly as well (two servers with an IP address that can move between them, or the provider's managed load balancer). After changing the configuration, always test it before reloading; one faulty line affects every site.

Timeouts

The reverse proxy does not wait indefinitely for the backend's response. In Nginx, the default of the proxy_read_timeout directive is 60 seconds; if the backend sends no response within that time, the visitor sees a 504 error. If the backend cannot be reached at all, or an invalid response arrives, the error is 502. Solve long-running operations (reports, exports) by running them in the background where possible, not by raising the timeout. The error codes are covered in detail in the guide to 502 and 504 errors.

Upload size

In Nginx, the default of client_max_body_size is 1m (1 megabyte). If your application allows larger file uploads, you need to raise this limit on the reverse proxy too; otherwise the request is rejected with a 413 error before it reaches the application.

When do you need a reverse proxy?

• If your application is a process running on its own port (such as Node.js, Java, Python or .NET) and you want to publish it on 80/443.
• If you host several sites or applications on the same server.
• If you want to manage certificates in one place.
• If you need to spread traffic across several servers or update without downtime.
• If you want to separate static files and caching from the application and reduce its load.

For a classic PHP site on shared hosting you do not need to set up a reverse proxy yourself; the hosting provider manages that arrangement. If you manage your own server (a VPS or a physical server), a reverse proxy is a natural part of the setup.

Checklist

• The backend servers are not exposed directly to the internet; they accept connections from the reverse proxy only.
• The Host, X-Forwarded-For and X-Forwarded-Proto headers are passed on.
• The application trusts these headers only on requests that come from the address of the reverse proxy.
• The real IP address of the visitor appears in the logs.
• Timeout and upload size limits are set to suit the application's needs.
• Configuration changes are tested before reloading.
• It is known what happens when the reverse proxy stops: monitoring and, where needed, a standby are in place.
